Additional information
| Options | Cart Type II, Diaphragm 30", Diaphragm 36", Great Cart Only, Tension Strut, Yellow Great Nose Assembly |
|---|

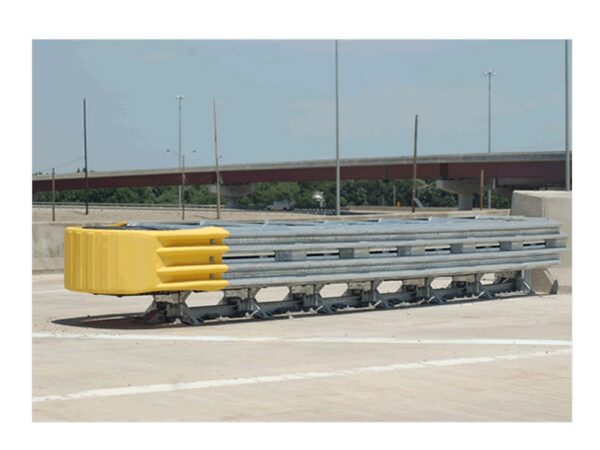

QuadGuard Crash Cushion System
The new family of QuadGuard crash cushions offers the latest technology for shielding hazards 610 to 3048 mm (2′ to 10′). Each Quadguard System consists of crushable, energy-absorbing cartridges surrounded by a framework of Energy’s exclusive steel Quad-Beam™ panels. These new crash cushions redefine NCHRP 350, Test Level 3 performance for redirective, non-gating attenuators. The QuadGuard Systems have successfully passed the complete NCHRP 350, Test Level 3 test matrix with both the light car and high center-of-gravity pickup truck at speeds up to 100 km/h (62 mph) at angles up to 20°. Higher speed units are available. During head-on impacts, the QuadGuard Systems telescope rearward and crush the cartridges to absorb the energy of impact. When impacted from the side, the QuadGuard Systems safely redirect the errant vehicle back toward its original travel path without allowing gating.
- Non-gating, redirective system
- Performs effectively with both light cars and high center-of-gravity pickup trucks
- Meets TL-1 (50 km/h / 30 mph) TL-2 (70 km/h / 43 mph) and TL-3 (100 km/h /62 mph)
- Angles up to 20°
- QuadGuard HS System is available to meet NCHRP 350 TL-3 tests at 113 km/h (70 mph)
